Maverick16 Ultra-compact qPCR System
Maverick16 Ultra-compact qPCR System
A 16-well qPCR system you can carry to the sample

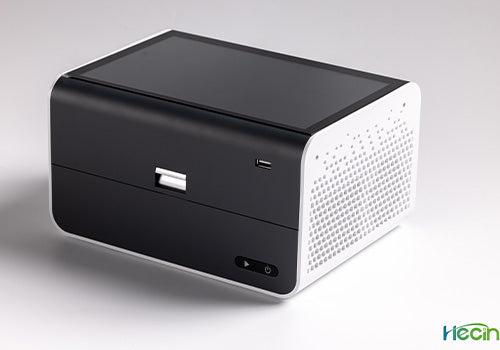

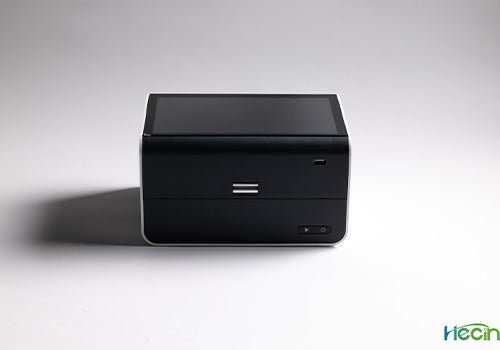

Maverick16 is an ultra-compact real-time PCR (qPCR) system with 16 wells and 4 fluorescence channels, built for mobile and benchtop molecular testing.
If you have ever waited for a free slot on a shared 96-well cycler to run a handful of samples, this instrument is for you. It runs 45 cycles in about 25 minutes according to the manufacturer, weighs 2.8 kg and works on its own from a 10-inch touchscreen.
Manufactured by Hecin Scientific. Distributed in the EU by Auralis Biotech. For Research Use Only (RUO) in the EU. Sold to professional and business customers only.
Results in one short run
45 qPCR cycles in about 25 minutes (manufacturer data).No computer needed
Full standalone operation from a 10-inch touchscreen.Multiplex in a compact format
16 wells and 4 fluorescence channels.Goes where the samples are
2.8 kg and 247 × 188 × 133 mm.Why 16 wells
Not every run needs 96 wells. A 16-well block matches the instrument to the size of the job.
Fast turnaround
Smaller batches mean quicker cycles and quicker decisions.Sized for small batches
Run 1 to 16 samples without waiting to fill a 96-well plate.Low energy use
Minimal energy consumption and heat output.Portable
Lightweight and compact enough to carry in a backpack.Accessible
A fit for mobile units, teaching labs and remote setups.Technical specifications
| Format | 16 wells |
|---|---|
| Detection channels | 4 |
| Detection | Built-in CMOS image sensor, 3.0 × 10⁻⁶ lux sensitivity |
| Run time | 45 qPCR cycles in about 25 minutes (manufacturer data; depends on the protocol) |
| Operation | Standalone, 10-inch touchscreen, no laptop required |
| Connectivity | USB and Wi-Fi |
| Data export | PDF, Excel or JSON |
| Interface languages | English and Chinese |
| Weight | 2.8 kg |
| Dimensions | 247 × 188 × 133 mm |
| Intended use in the EU | Research Use Only (RUO). Not for diagnostic procedures. |
| CE marking | CE marked by the manufacturer. Declaration of conformity available on request. |
| Manufacturer quality system | Hecin Scientific is certified to ISO 9001 and ISO 13485. |
| United States | Registered with the US FDA. FDA registration is not an FDA approval or clearance. |
Where it is used
Uses depend on the regulatory status in each market. In the EU, Maverick16 is supplied for Research Use Only (RUO).
- University and research labs
- Hospitals and public health institutes
- Border inspection and customs
- Forensic and criminal labs
- Veterinary clinics
- Food and pharmaceutical quality control
Publications
Frequently asked questions
What is the Maverick16?
Maverick16 is an ultra-compact real-time PCR (qPCR) system with 16 wells and 4 fluorescence channels, built for mobile and benchtop molecular testing.
How long does a run take?
Manufacturer data indicate about 25 minutes for 45 qPCR cycles. Actual run time depends on the protocol.
Do I need a computer to run it?
No. The instrument works standalone from its 10-inch touchscreen, with no laptop or external device required.
How do I export my results?
Results can be exported as PDF, Excel or JSON files. The instrument supports USB and Wi-Fi connections.
Is the Maverick16 portable?
Yes. It weighs 2.8 kg and measures 247 × 188 × 133 mm, so it can be carried to the point of need.
Do I need to balance the samples before a run?
No. You can run any number of samples from 1 to 16 without balancing the tubes or filling the empty positions.
Does the Maverick16 need dye calibration?
No. The Maverick16 does not need dye calibration before use.
What is its regulatory and quality status?
In the EU, Maverick16 is supplied for Research Use Only (RUO). The manufacturer declares CE marking and holds ISO 9001 and ISO 13485 quality-system certifications. The instrument is registered with the US FDA; FDA registration is not an approval or clearance.
Can Maverick16 be used for diagnostic testing in the EU?
No. In the EU, Maverick16 is supplied for Research Use Only (RUO) and is not intended for use in diagnostic procedures.
How can I get the Maverick16 in Europe?
Auralis Biotech distributes the Maverick16 in the EU for Research Use Only (RUO). Contact us with your application and we will send you information and a quote. We sell to professional and business customers only.
